R-CF120
Concealed Hinge
Stainless Steel 304/316L concealed hinge. Size 30x160mm.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Bronze-green
- PVD High-gloss Gold
- Gunpowder Residue
- PVD Gold
Specification

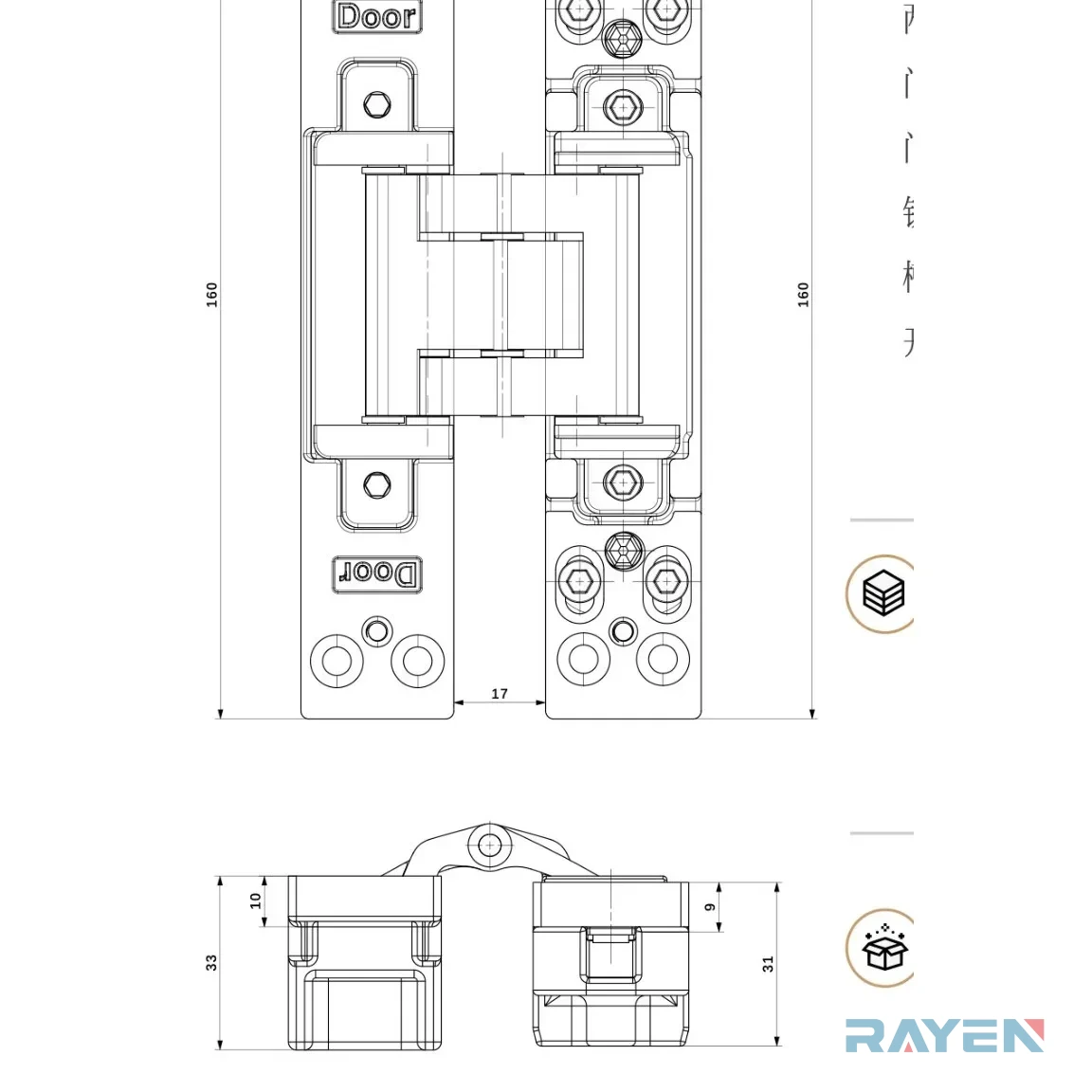

| Size | 30x160mm |
|---|---|
| Maximum load capacity (2 hinges) | 120kg |
| Minimum door thickness | 40mm |
| Maximum door width | 1000mm |
| Milling cutter diameter | Ø30mm |
| Routing length | 160&125mm |
| Routing depth | 10&32.5mm |
| Adjustment | Up and down: ±3.0mm; Left and right: +3.5/-2.0mm; Front and back: ±1.5mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
