R-CS40X
Concealed Hinge
Stainless Steel 304/316L concealed hinge. Size 19x95mm.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Bronze-green
- PVD High-gloss Gold
- Gunpowder Residue
- PVD Gold

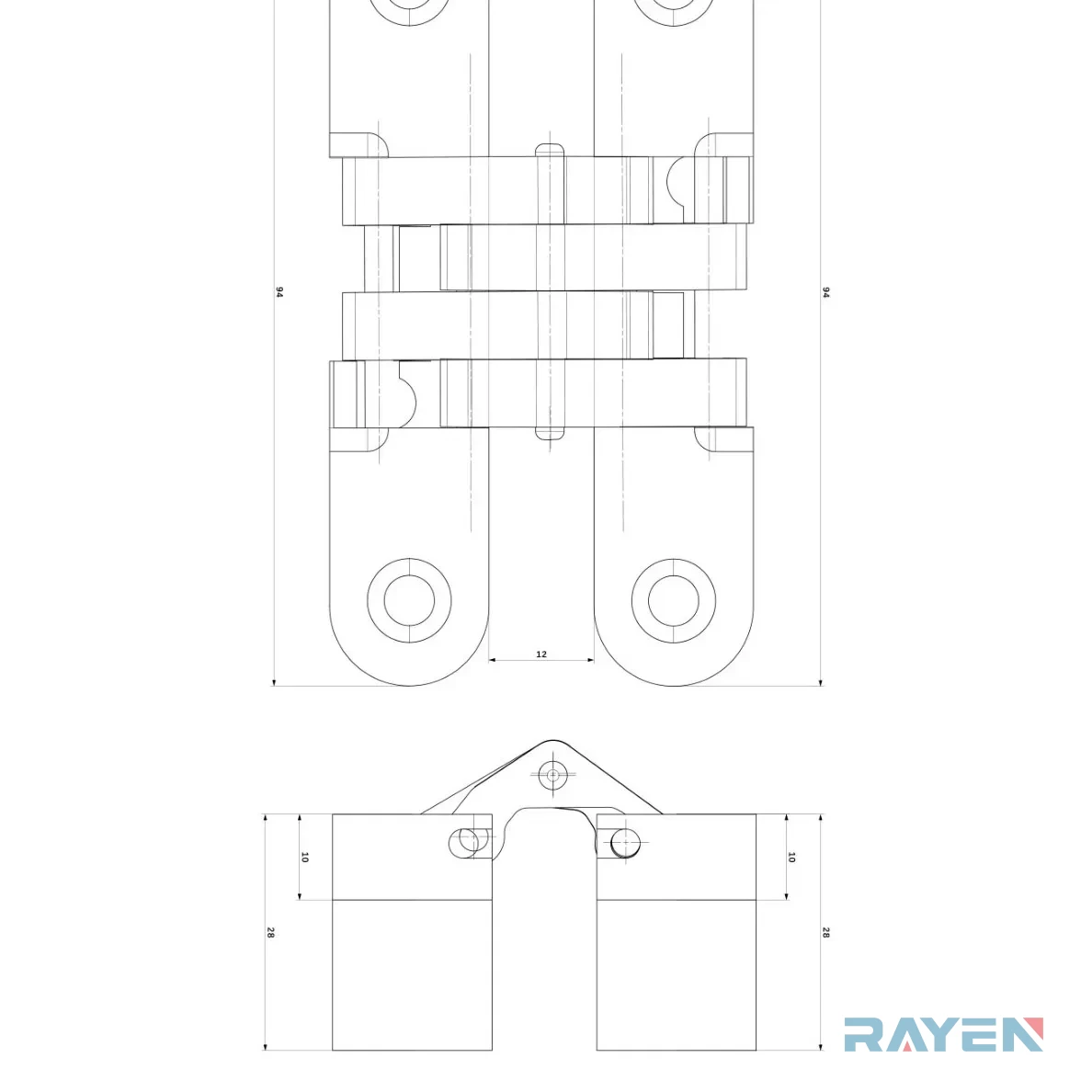

Specification
| Size | 19x95mm |
|---|---|
| Maximum load capacity (2 hinges) | 40kg |
| Minimum door thickness | 25mm |
| Maximum door width | 900mm |
| Milling cutter diameter | Ø19mm |
| Routing length | 95&54mm |
| Routing depth | 10&28mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
