R-CS80
Concealed Hinge
Stainless Steel 304/316L concealed hinge. Size 28x117mm.
Available finishes
- Sandblasted and Brushed
- Matt Black
- Bronze-green
- PVD High-gloss Gold
- Gunpowder Residue
- PVD Gold
Specification

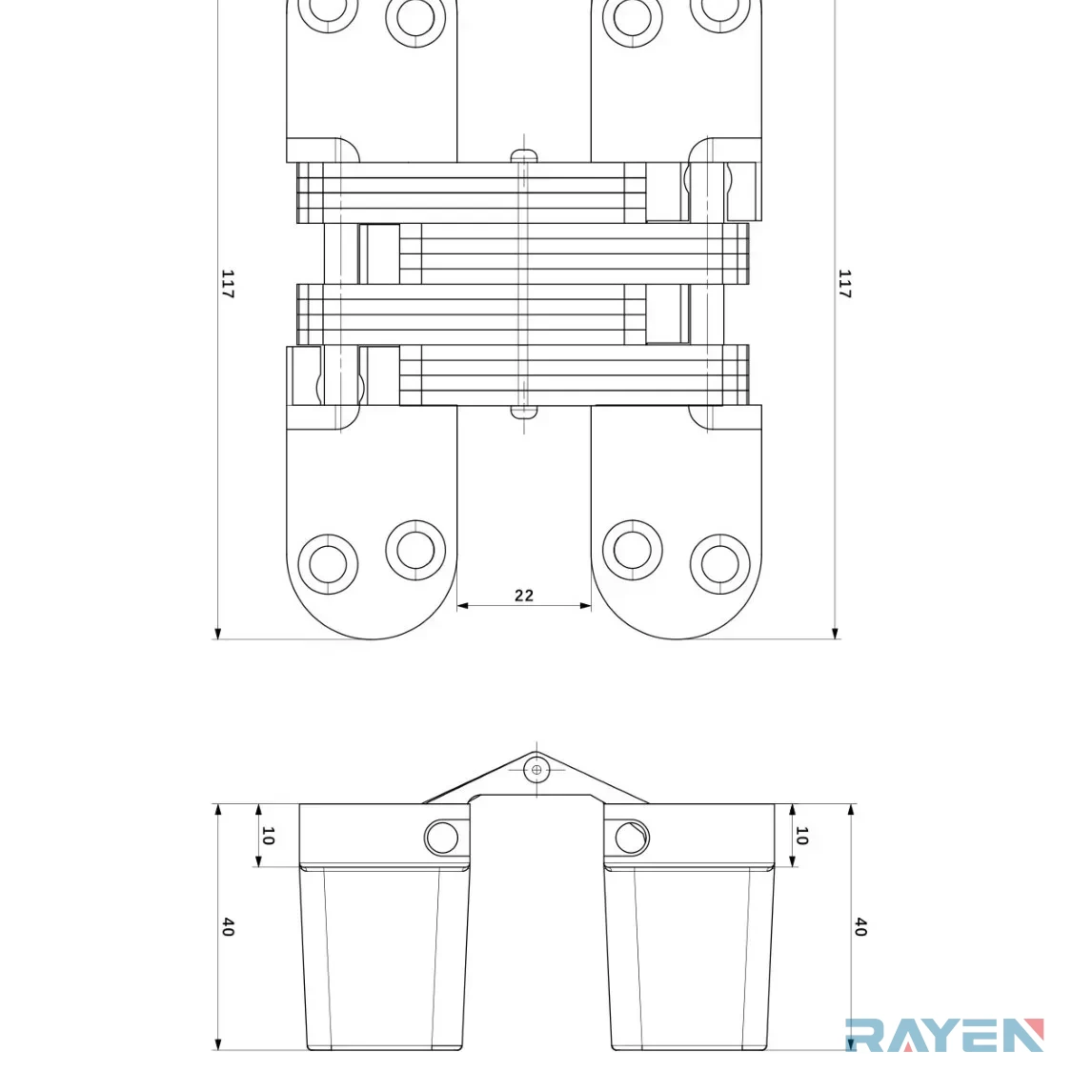

| Size | 28x117mm |
|---|---|
| Maximum load capacity (2 hinges) | 80kg |
| Minimum door thickness | 36mm |
| Maximum door width | 1000mm |
| Milling cutter diameter | Ø28mm |
| Routing length | 117&67mm |
| Routing depth | 10&40mm |
| Opening angle | 180° |
| Material | Stainless Steel 304/316L |
