RY8001
Concealed Hydraulic Hinge
Concealed Hydraulic Hinge for wooden door. Door thickness 40-60mm.
Available finishes
- Brushed Gunmetal
- Matt Black
- True Gold
- Brushed Brass
- Polished Chrome
- Matt White

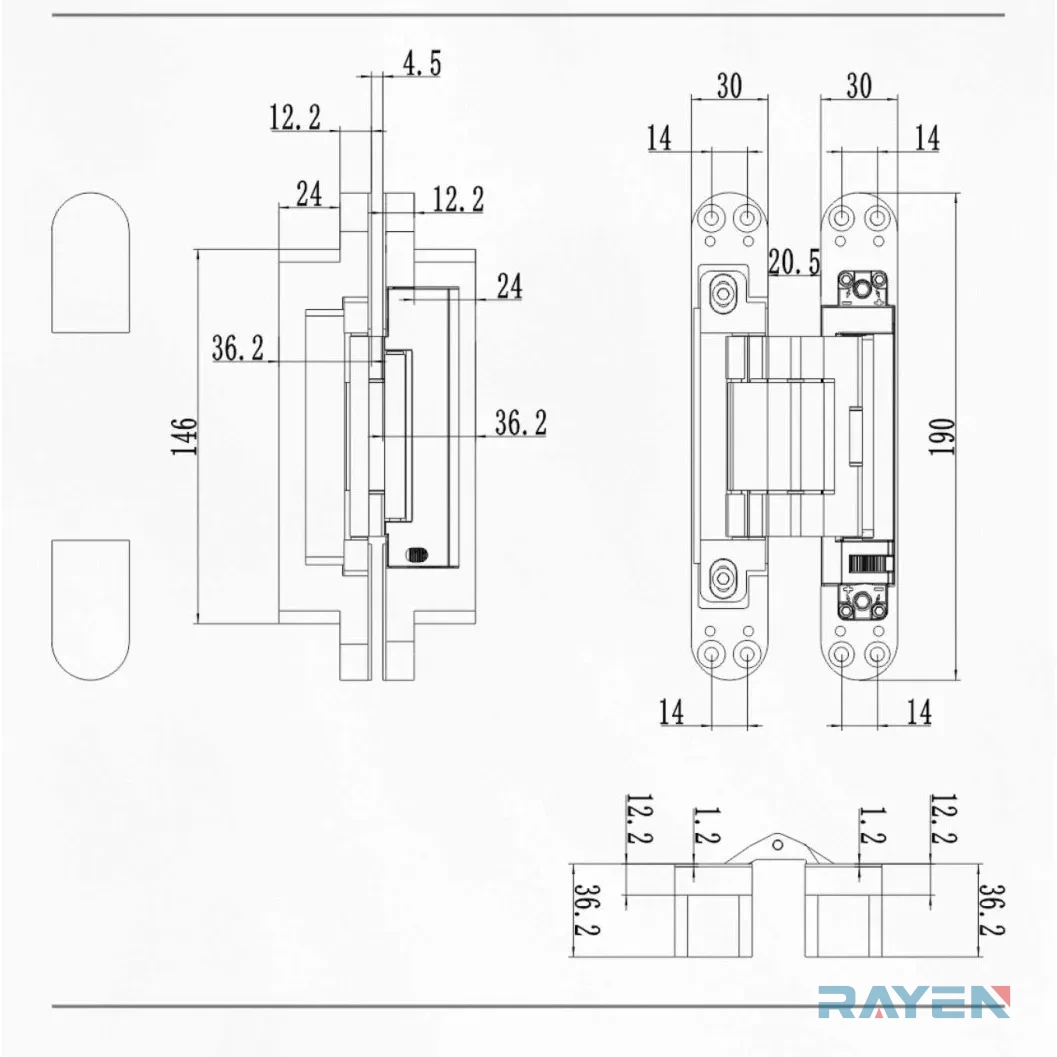

Specification
| Overall length | 190mm |
|---|---|
| Leaf width | 30mm |
| Routing section | 36.2 × 12.2mm |
| Material | Zinc Alloy + Aviation aluminium |
| Door thickness | 40-60mm |
| Routing edge distance | Door leaf 5mm / frame 5mm |
| Maximum door weight | 60kg (2 hydraulic) / 80kg (2 hydraulic + 1 plain leaf) / 90kg (3 hydraulic) |
| Three-dimensional adjustment | In and out ±1.0mm / up and down ±2.5mm / left and right ±1.5mm |
| Maximum opening angle | 180° |
| Hold-open | Any angle between 90° and 180° |
| Features | Three-dimensionally adjustable; Self-closing hydraulic buffer; Closing speed adjustable fast or slow, no tool needed; Shallow routing, no hydraulic tail rod |
