RY8002
Concealed Hydraulic Hinge
Concealed Hydraulic Hinge for wooden door. Door thickness 40-60mm.
Available finishes
- Brushed Gunmetal
- Matt Black
- Brushed Matt Nickel
- Brushed Brass
- True Gold
- Polished Chrome

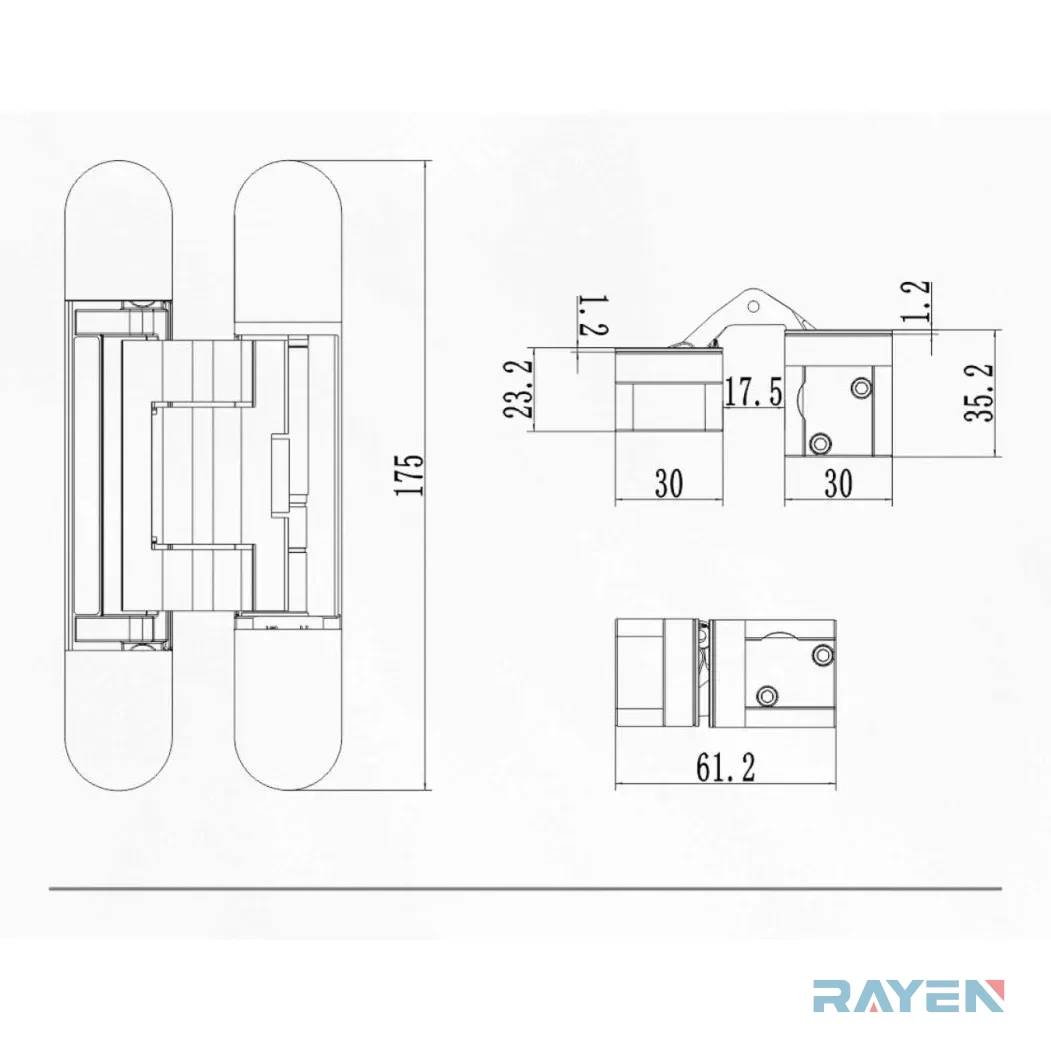

Specification
| Overall length | 175mm |
|---|---|
| Leaf width | 30mm |
| Width across leaves | 61.2mm |
| Routing depth | 23.2mm / 35.2mm |
| Material | Zinc Alloy + Aviation aluminium |
| Door thickness | 40-60mm |
| Routing edge distance | Door leaf 4-13mm / frame 4-13mm |
| Maximum door weight | 60kg (2 hydraulic) / 80kg (2 hydraulic + 1 plain leaf) / 90kg (3 hydraulic) |
| Three-dimensional adjustment | In and out ±1.0mm / up and down ±2.0mm / left and right ±1.5mm |
| Maximum opening angle | 180° |
| Hold-open | Any angle between 90° and 180° |
| Features | Three-dimensionally adjustable; Self-closing hydraulic buffer; Closing speed adjustable fast or slow, no tool needed; Shallow routing, no hydraulic tail rod |
