RY8003
Concealed Hydraulic Hinge
Zinc Alloy + Aluminium Alloy concealed hydraulic hinge for wooden door. Door thickness 35-60mm.
Available finishes
- Brushed Gunmetal
- Matt Black
- Polished Chrome
- Matt White
- Brushed Brass
- True Gold

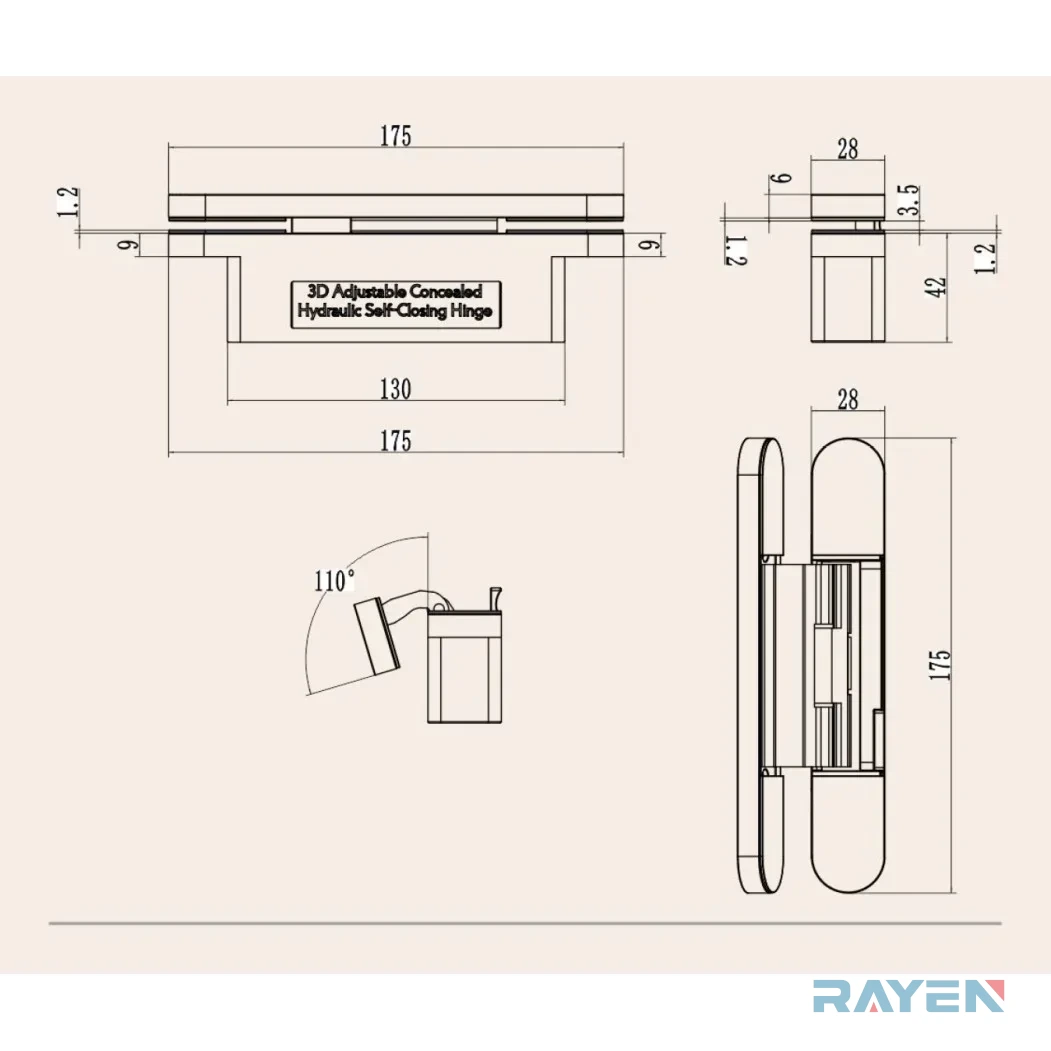

Specification
| Overall length | 175mm |
|---|---|
| Leaf width | 28mm |
| Routing | 130mm long × 42mm deep |
| Material | Zinc Alloy + Aluminium Alloy |
| Door thickness | 35-60mm |
| Installation direction | Handed neither left nor right, top nor bottom |
| Installation method | Routed in |
| Suitable door types | Rebated door, aluminium-framed door, wooden door |
| Three-dimensional adjustment | In and out ±1.0mm / up and down ±2.0mm / left and right ±2.0mm |
| Maximum opening angle | 110° |
| Maximum door weight | 70kg (2 hinges) |
| Features | 28mm narrow and 10mm slim; 45mm rebated door keeps a 4mm edge distance; Shallow frame routing that does not cut into the aluminium frame body; Fully concealed, closes flush when routed in; Hydraulic buffer with integrated damping; Three-dimensionally adjustable, precise and quick; Damping adjustable fast or slow, closing speed under control; 110° opening angle, self-closing with a silent buffer |
