RY8004
Concealed Hydraulic Hinge
Concealed Hydraulic Hinge for wooden door. Door thickness 35-60mm.
Available finishes
- Brushed Gunmetal
- Matt Black
- Brushed Matt Nickel
- Brushed Brass
- True Gold
- Matt White

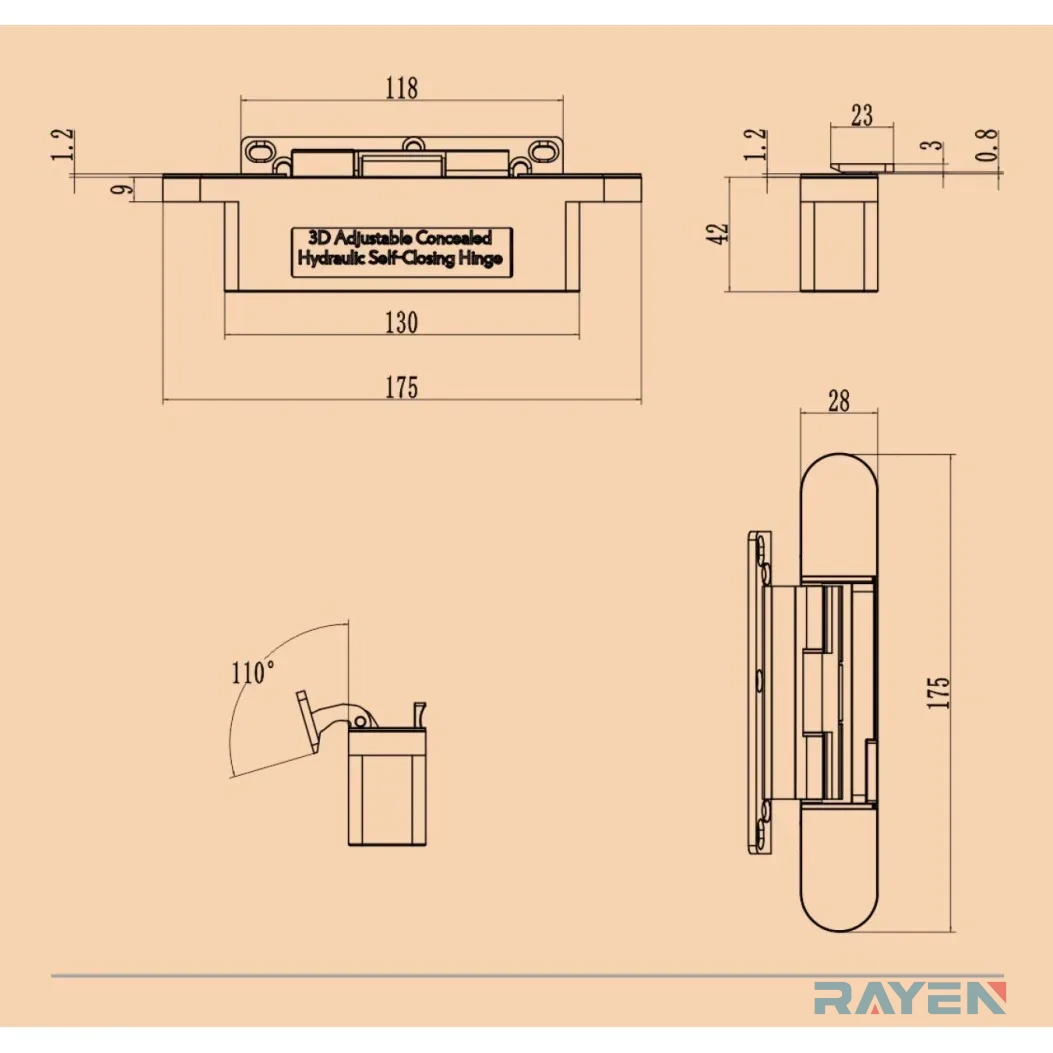

Specification
| Overall length | 175mm |
|---|---|
| Leaf width | 28mm |
| Routing | 130mm long × 42mm deep |
| Material | Zinc Alloy + Aviation aluminium + 304 Stainless Steel |
| Door thickness | 35-60mm |
| Maximum door weight | 60kg (2 hydraulic) / 80kg (2 hydraulic + 1 plain leaf) / 90kg (3 hydraulic) |
| Three-dimensional adjustment | In and out ±1.0mm / up and down ±2.5mm / left and right ±1.5mm |
| Maximum opening angle | 110° |
| Hold-open | Any angle between 90° and 110° |
| Features | Three-dimensionally adjustable; Self-closing hydraulic buffer; Closing speed adjustable fast or slow, no tool needed; Shallow routing, no hydraulic tail rod |
