RY8005
Hydraulic Hinge
Aerospace aluminium hydraulic hinge for wooden door.
Available finishes
- Brushed Gunmetal
- Matt Black
- Antique Bronze
- Satin Gold
- Antique Yellow Brass
- Matt White
Specification

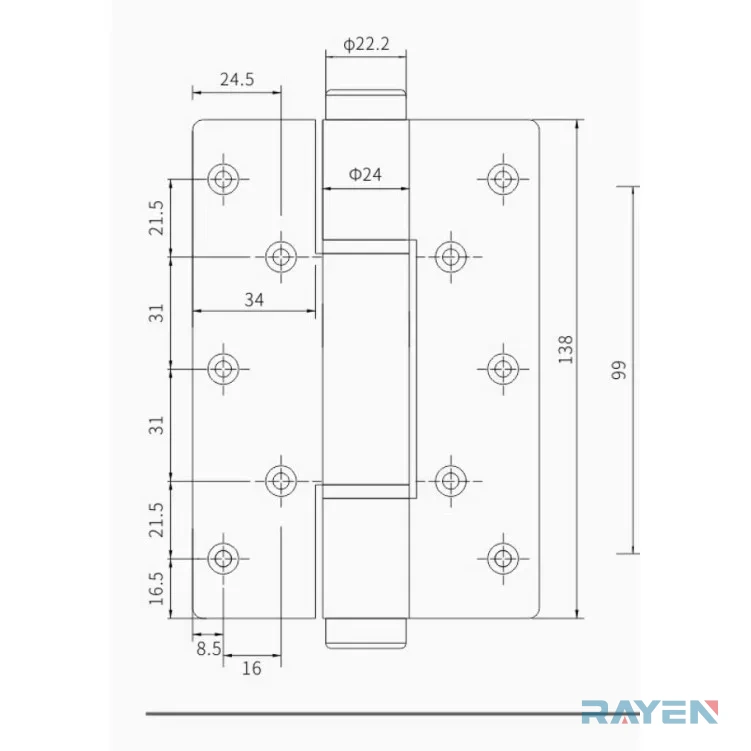

| Routing size | 140mm × 34mm × 4mm (4mm deep in both frame and leaf, or 8mm deep in the leaf alone) |
|---|---|
| Leaf width | 34mm / 30mm |
| Overall size | 138 × 34mm (34mm leaf) / 132 × 30mm (30mm leaf) |
| Knuckle diameter | Ø22.2mm |
| Maximum opening angle | 180° |
| Material | Aerospace aluminium |
| Finishing process | Anodised, electroplated |
| Function options | Silent hinge; latching hinge; silent latching adjustable hinge |
| Temperature range | -20°C to 40°C (uses door-closer Fuchs oil) |
| Hold-open | 90-180° |
| Service life | More than 500,000 cycles (cylindrical helical compression spring inside) |
| Maximum door weight | 2 hydraulic 55kg or less / 3 hydraulic 75kg or less |
| Maximum door height and width | 1 plain barrel + 1 hydraulic: height 2000mm or less, width 800mm or less; 2 hydraulic: height 2200mm or less, width 900mm or less; 3 hydraulic: height 2400mm or less, width 1200mm or less |
