G1169

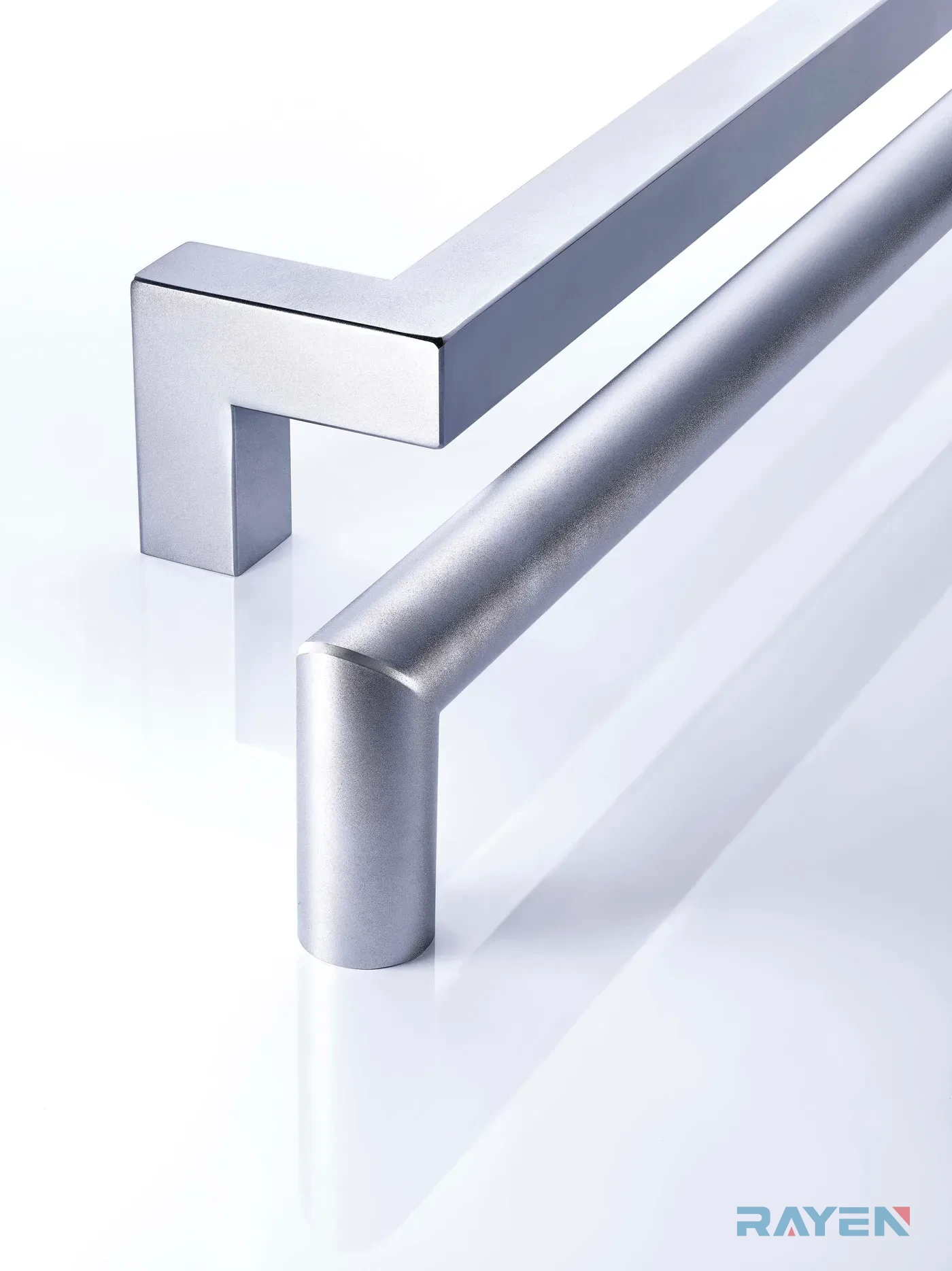

Glass Door Handle

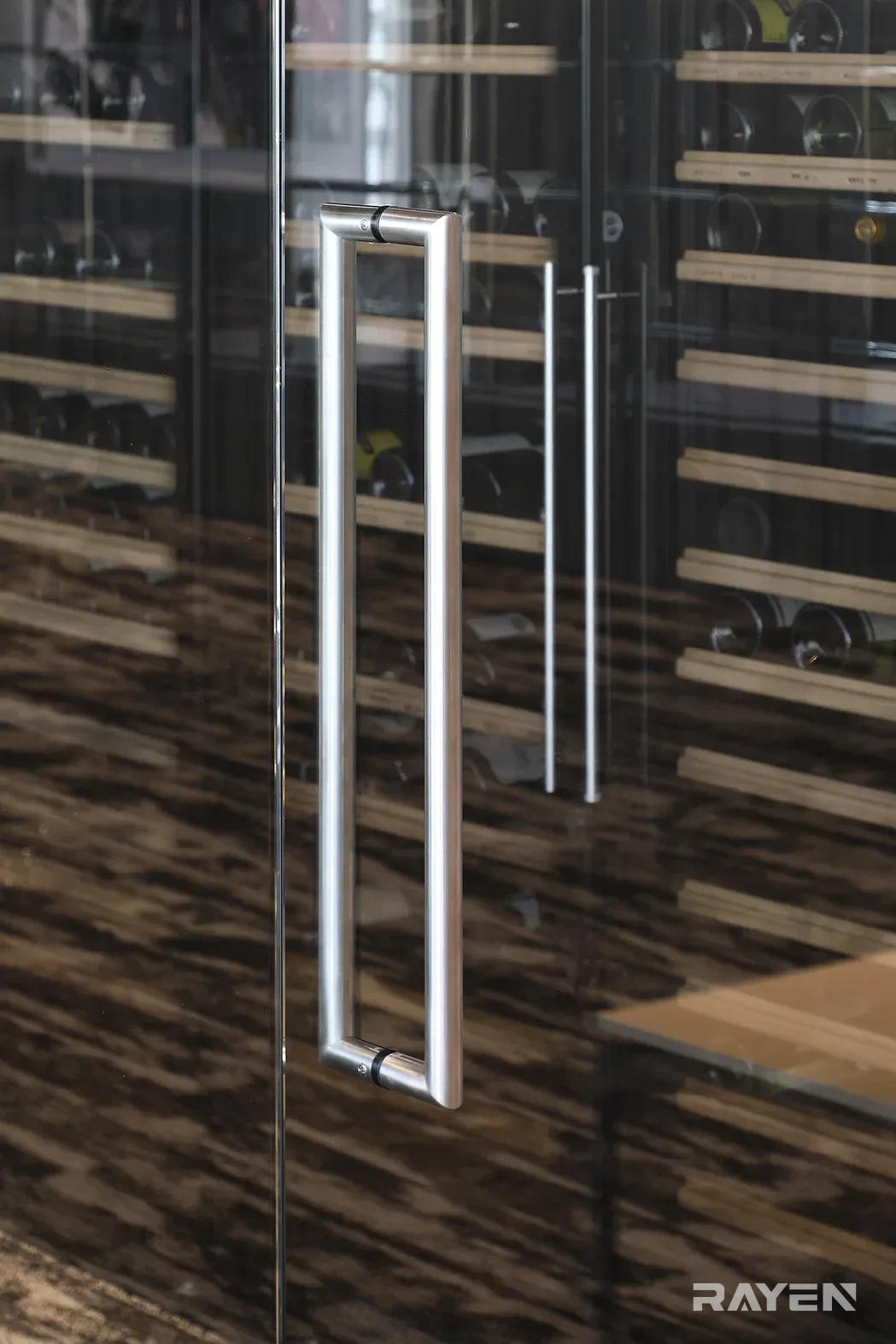

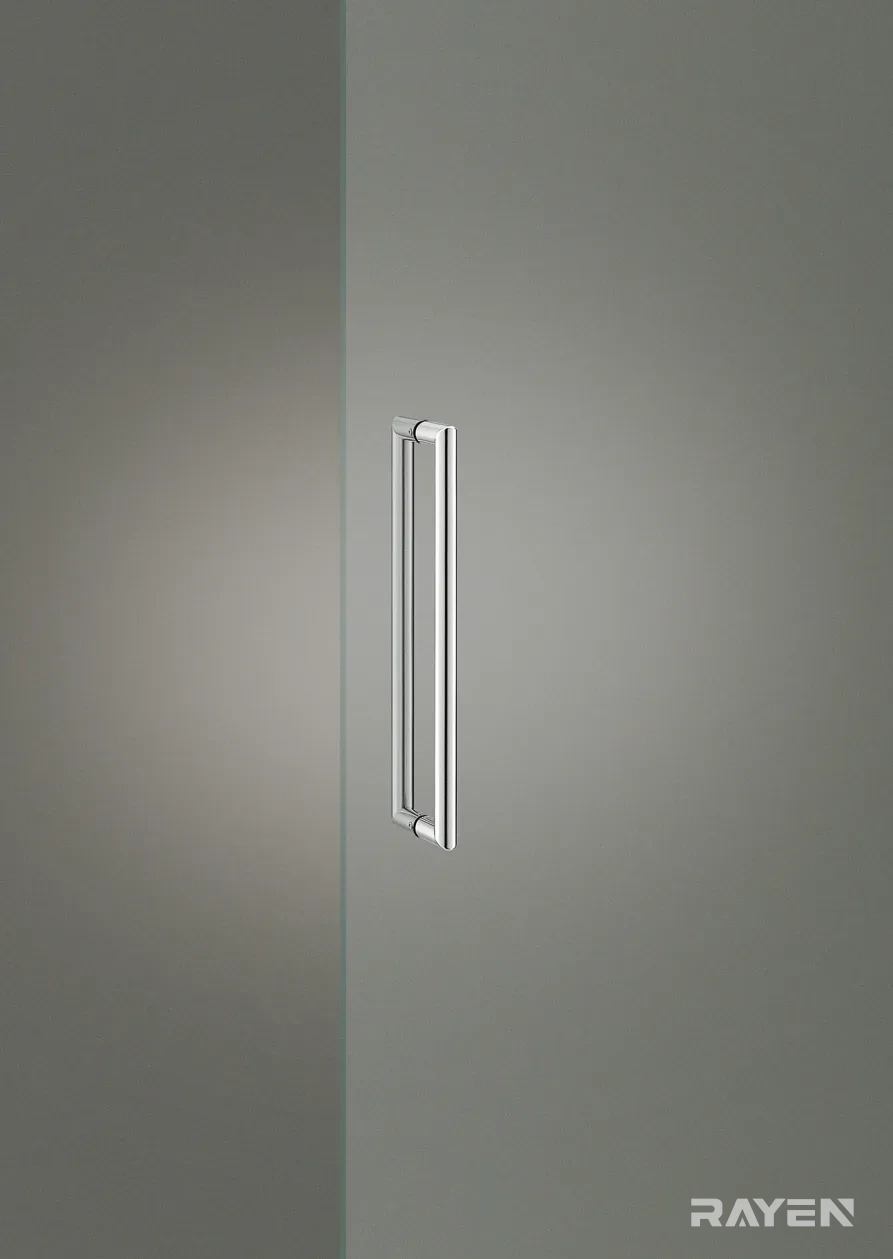

Stainless Steel glass door handle for glass door. Centre distance P=275mm (L300) / P=425mm (L450) / P=575mm (L600).
Available finishes

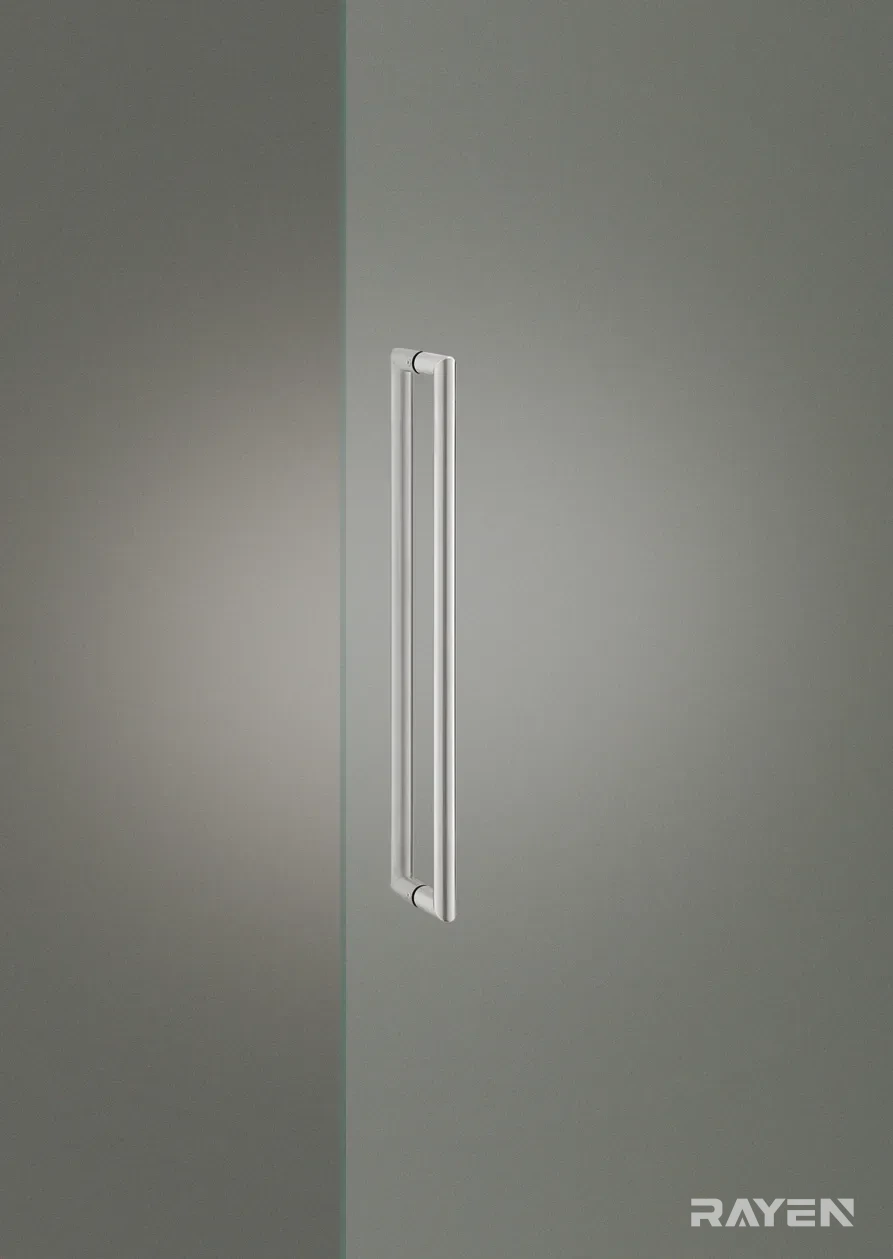

- Satin stainless

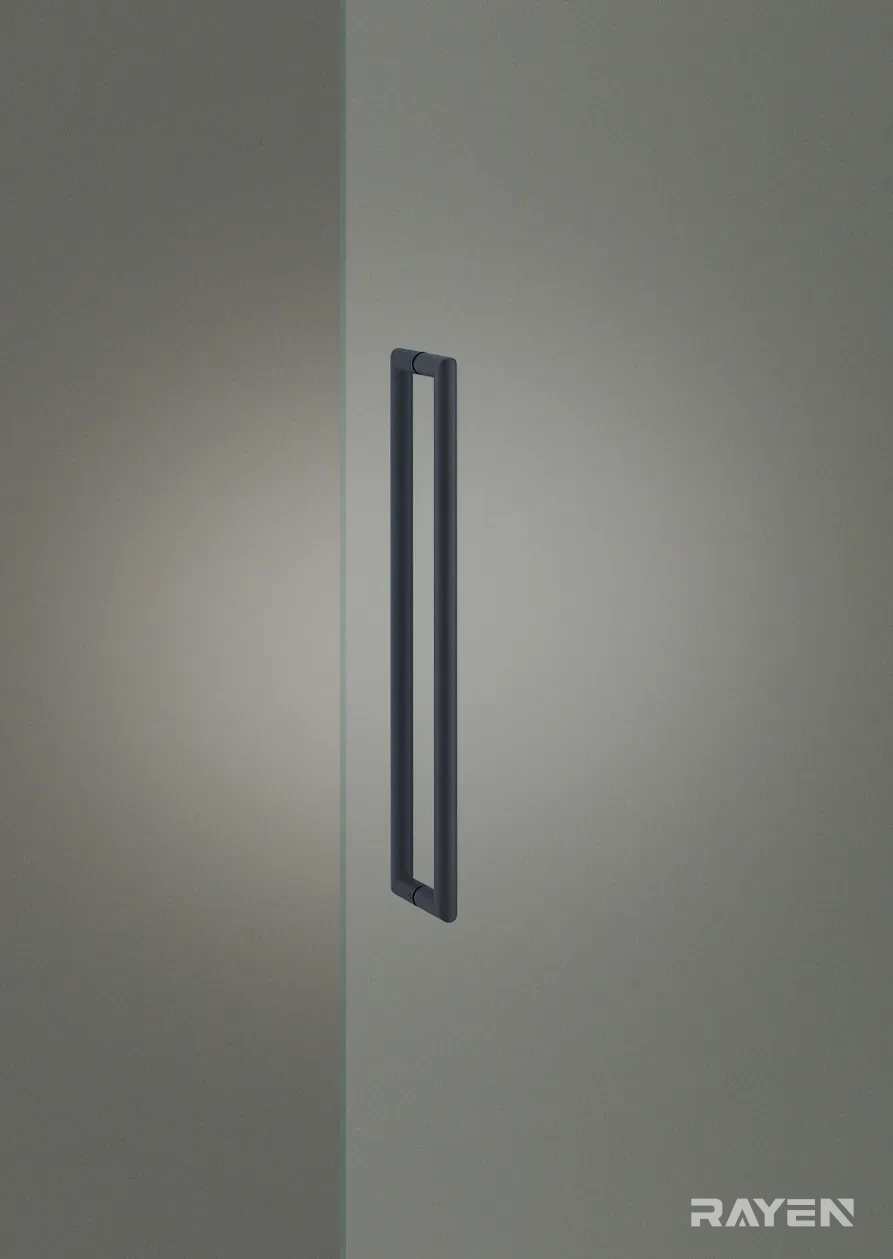

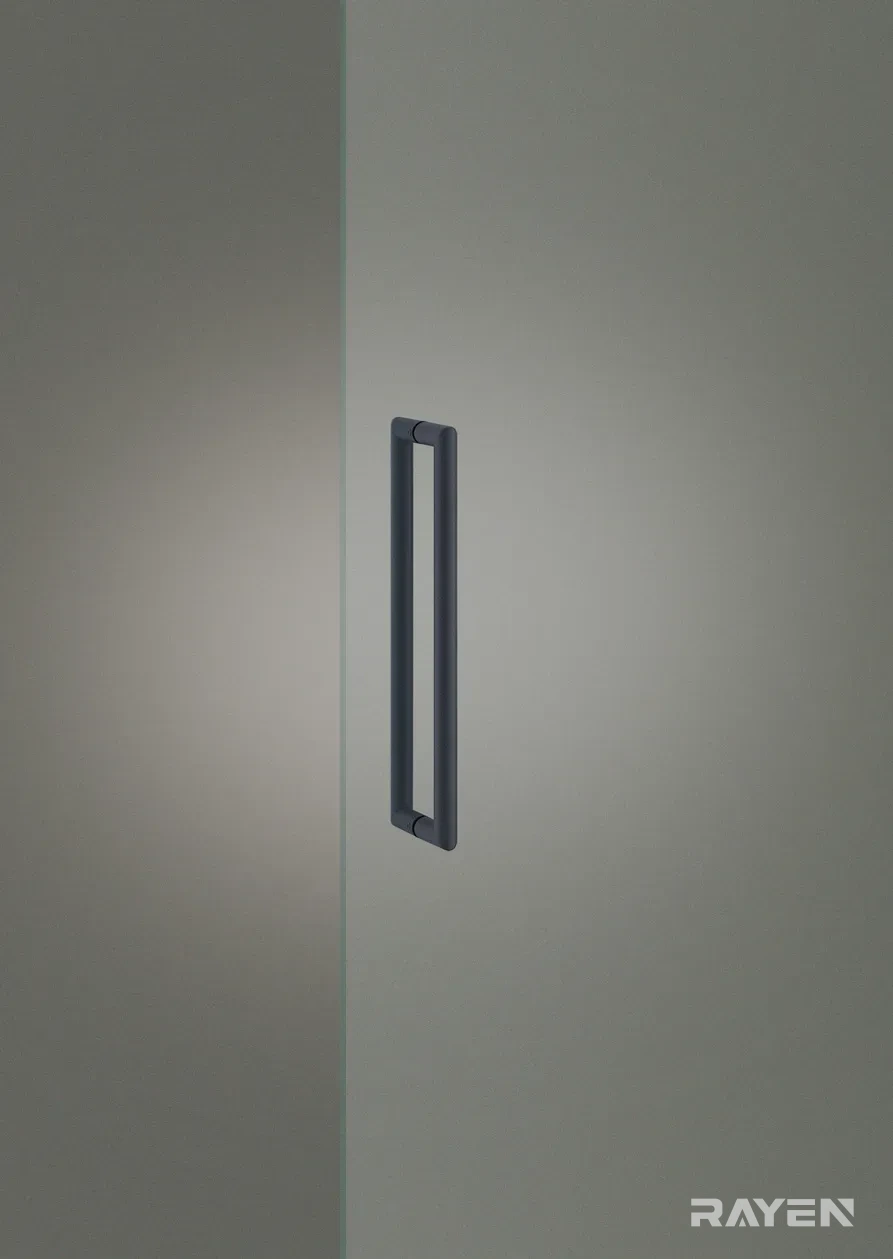

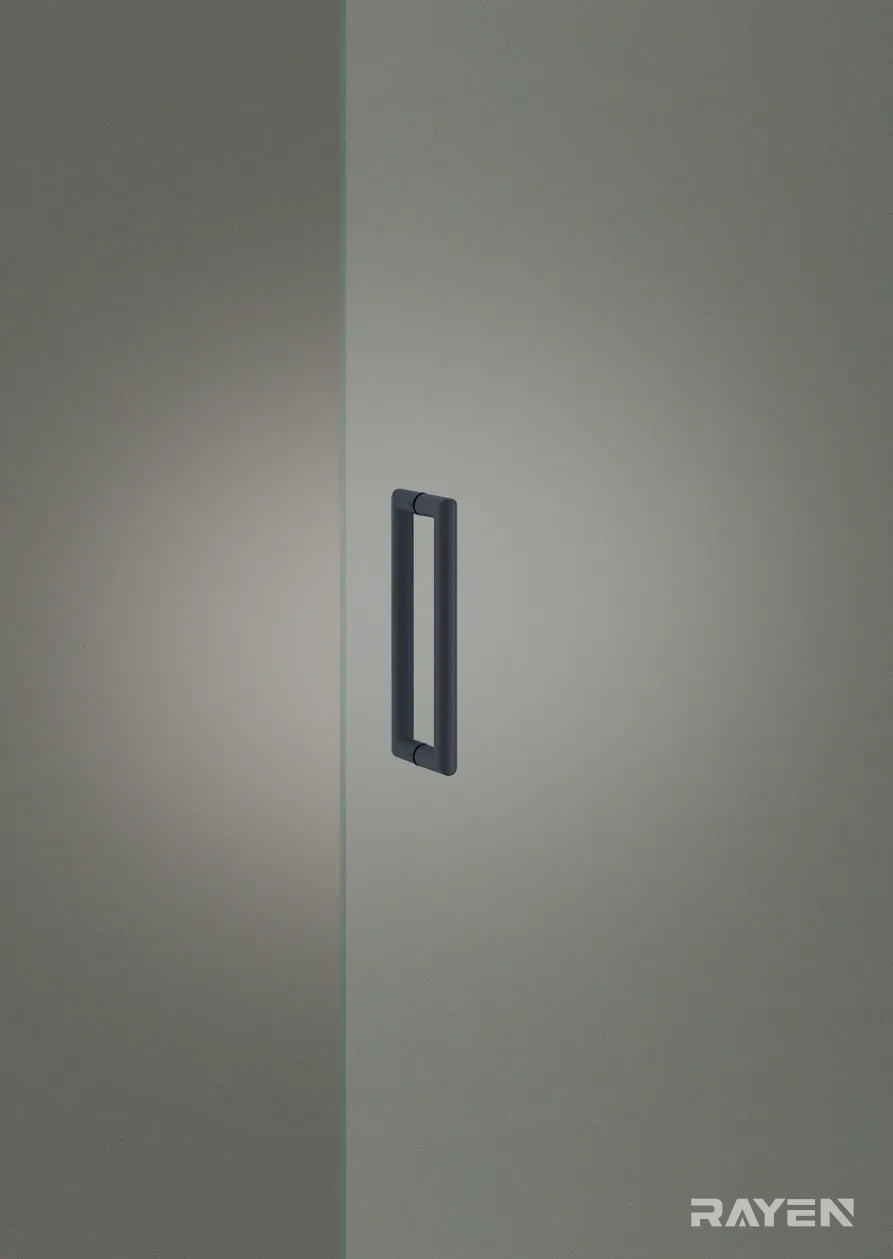

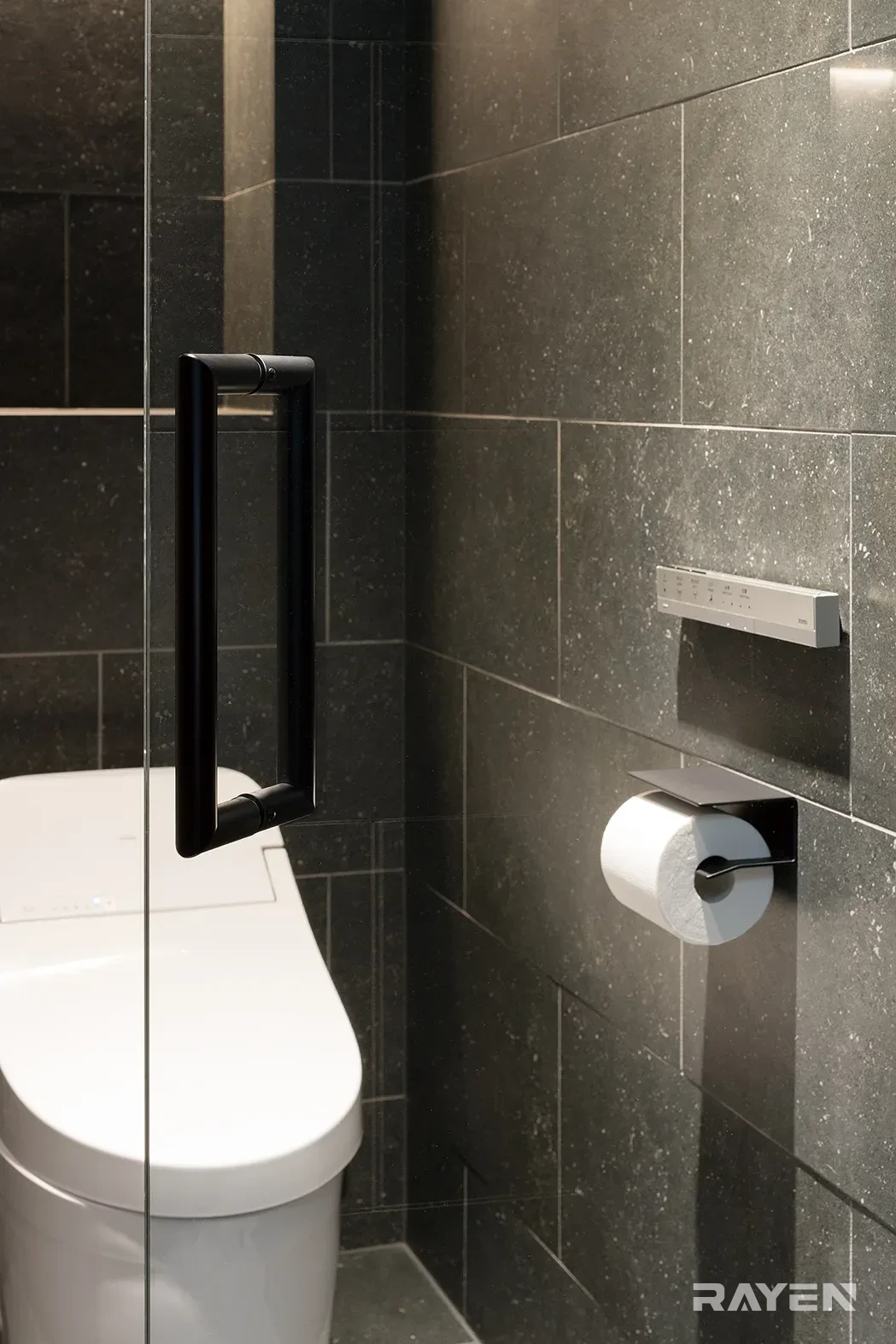

- Matt black
Specification
| Centre distance | P=275mm (L300) / P=425mm (L450) / P=575mm (L600) |
|---|---|
| Overall length | 300mm / 450mm / 600mm |
| Grip section | Ø25mm |
| Projection | 65mm |
| Weight | 0.8kg |
| Available lengths | 300–600mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
Matching range
This lever belongs to the same design family as the pull handles below.
