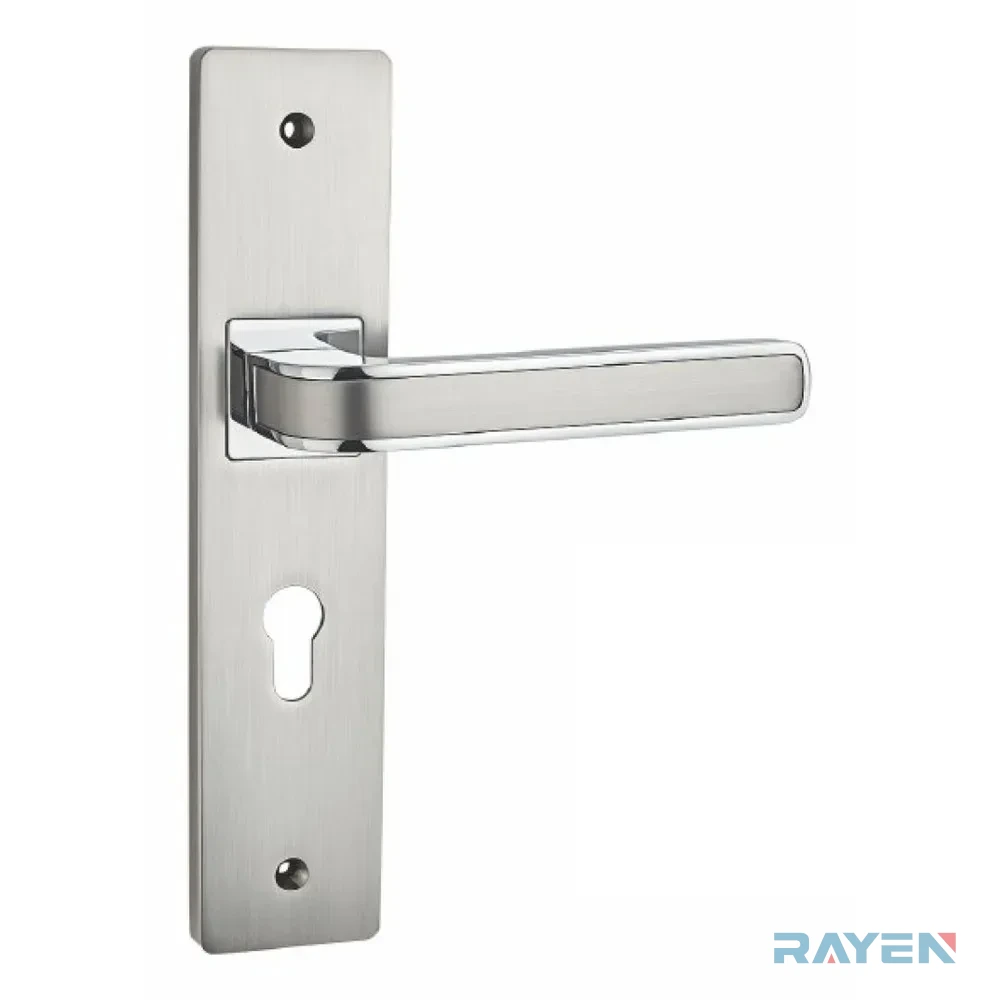

58181-745 Lever Handle on Backplate
RAYEN 58181-745 Lever Handle on Backplate: centre distance 58mm, overall length 120mm, lock case 5845, plate size 185 × 45mm. Made in Xiaolan, Zhongshan, also to your drawing or sample.
Available finishes
- Brushed Satin Nickel / Polished Chrome
- Brushed Black Nickel / Polished Chrome
Specification
| Overall length | 120mm |
|---|---|
| Plate size | 185 × 45mm |
| Centre distance | 58mm |
| Material | Zinc Alloy |
| Door thickness | 38-50mm |
| Lock case | 5845 |
