T1263 · 1 of 8
T1263

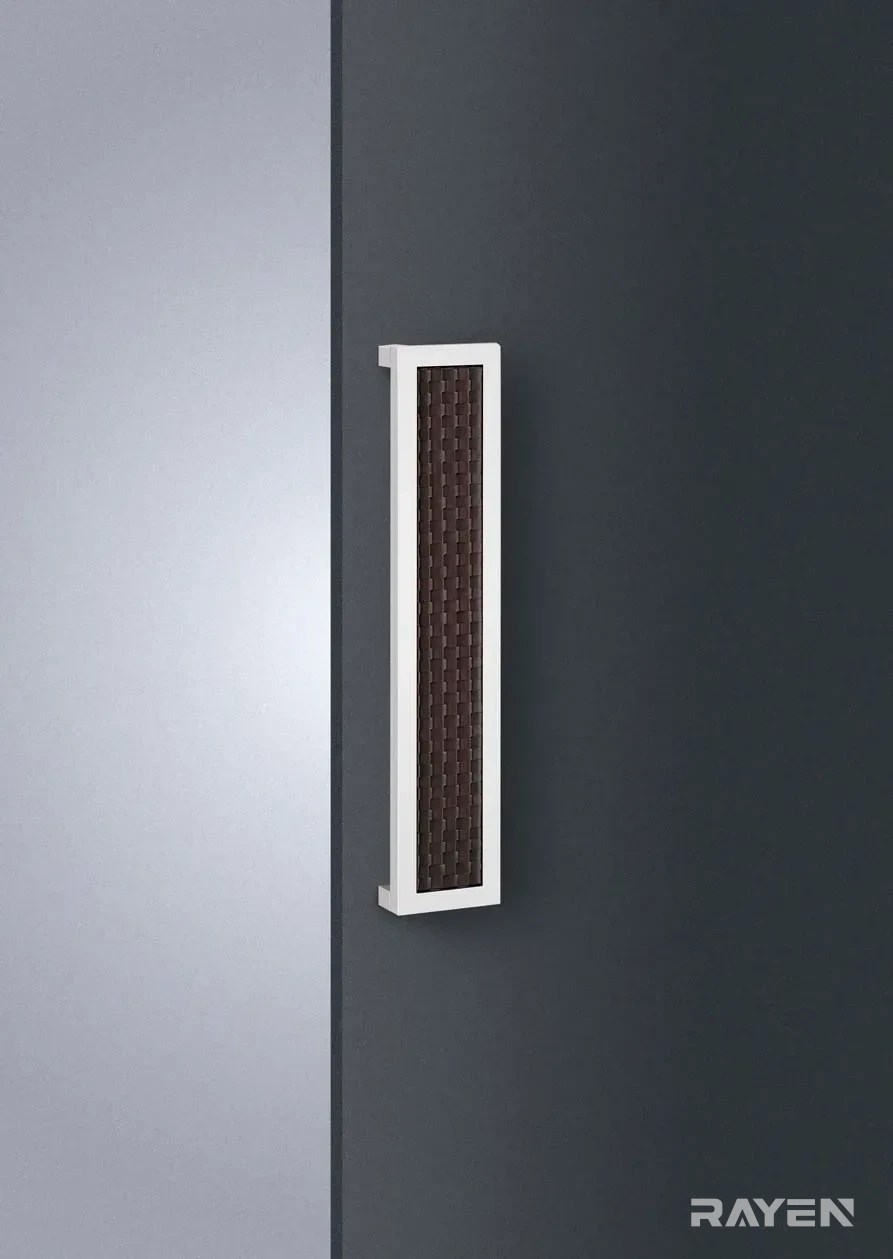

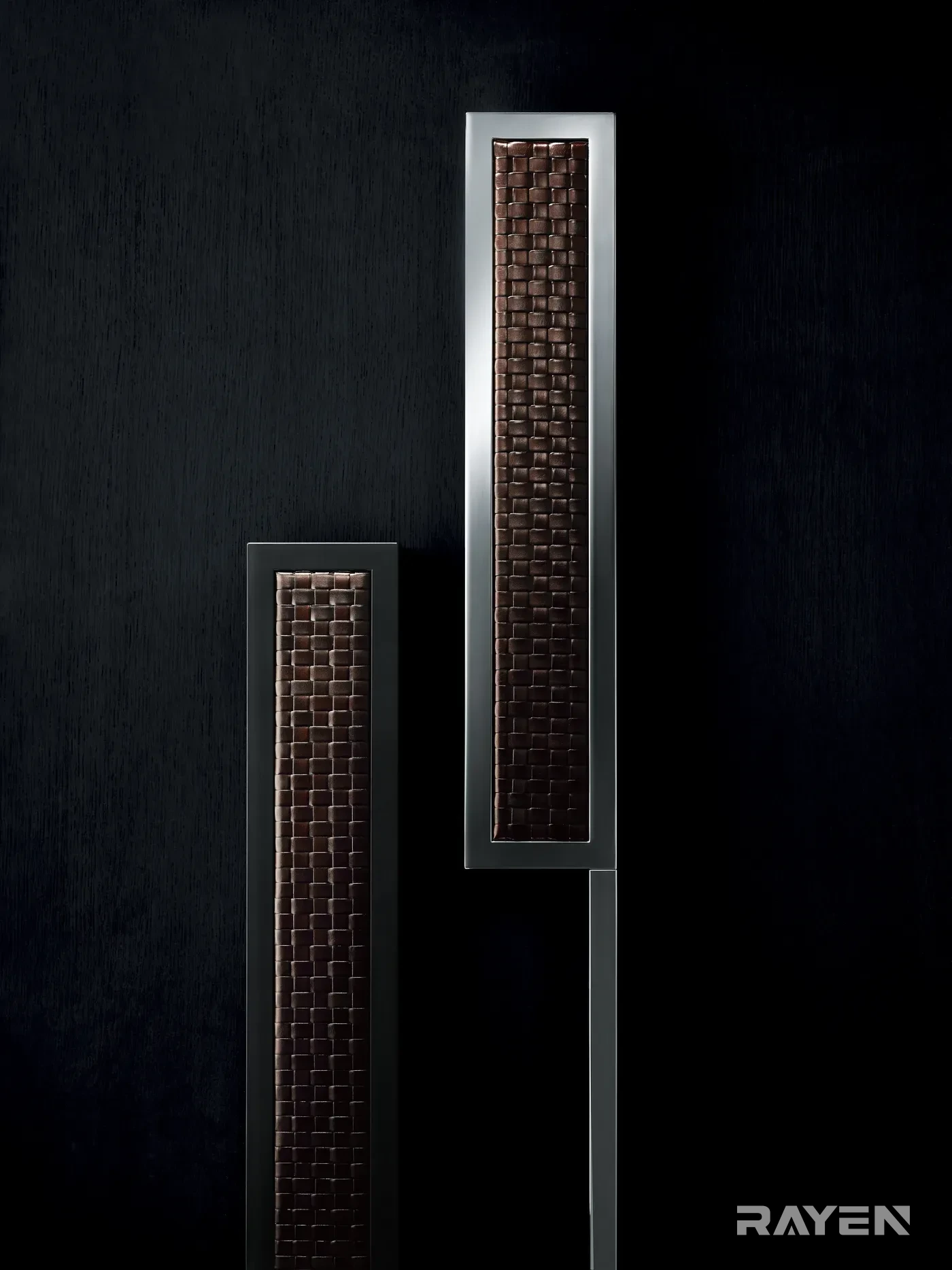

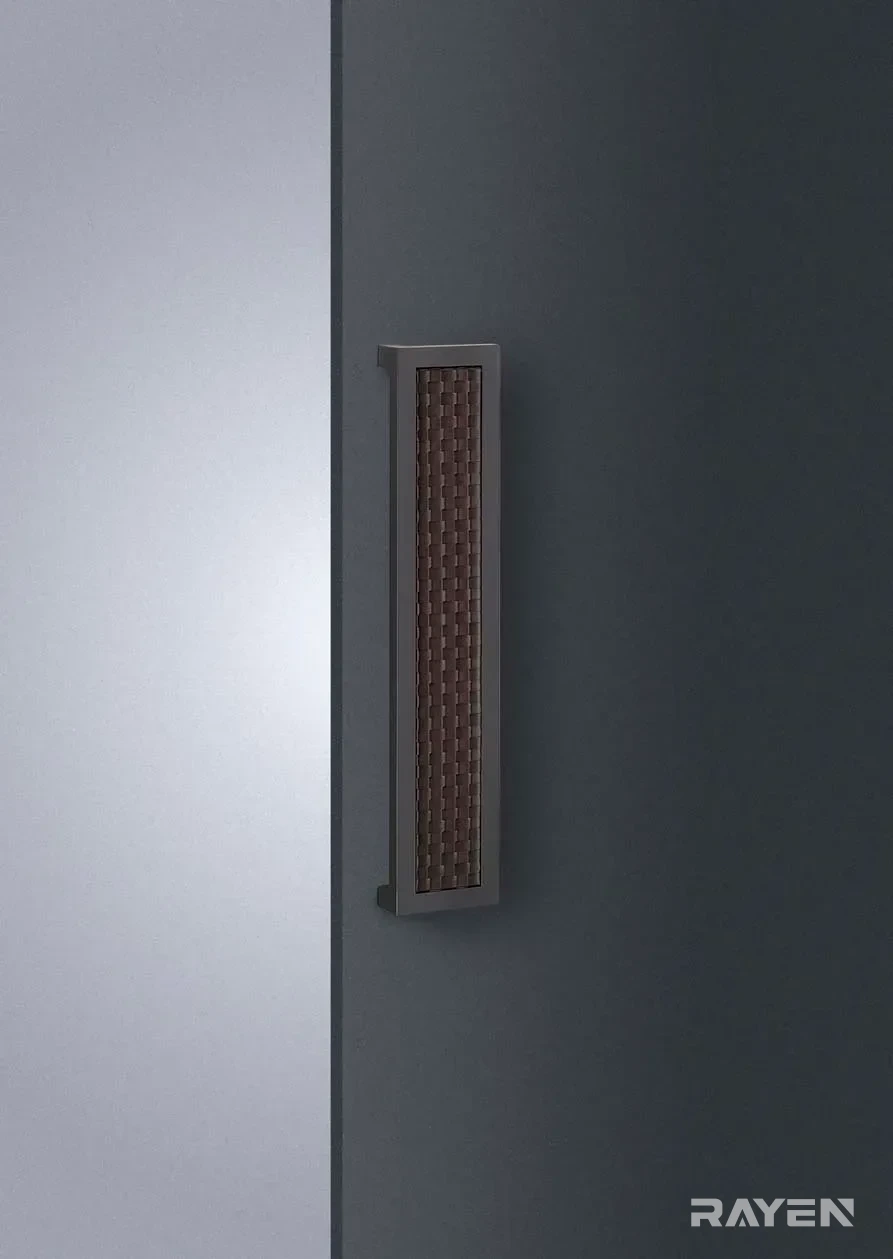

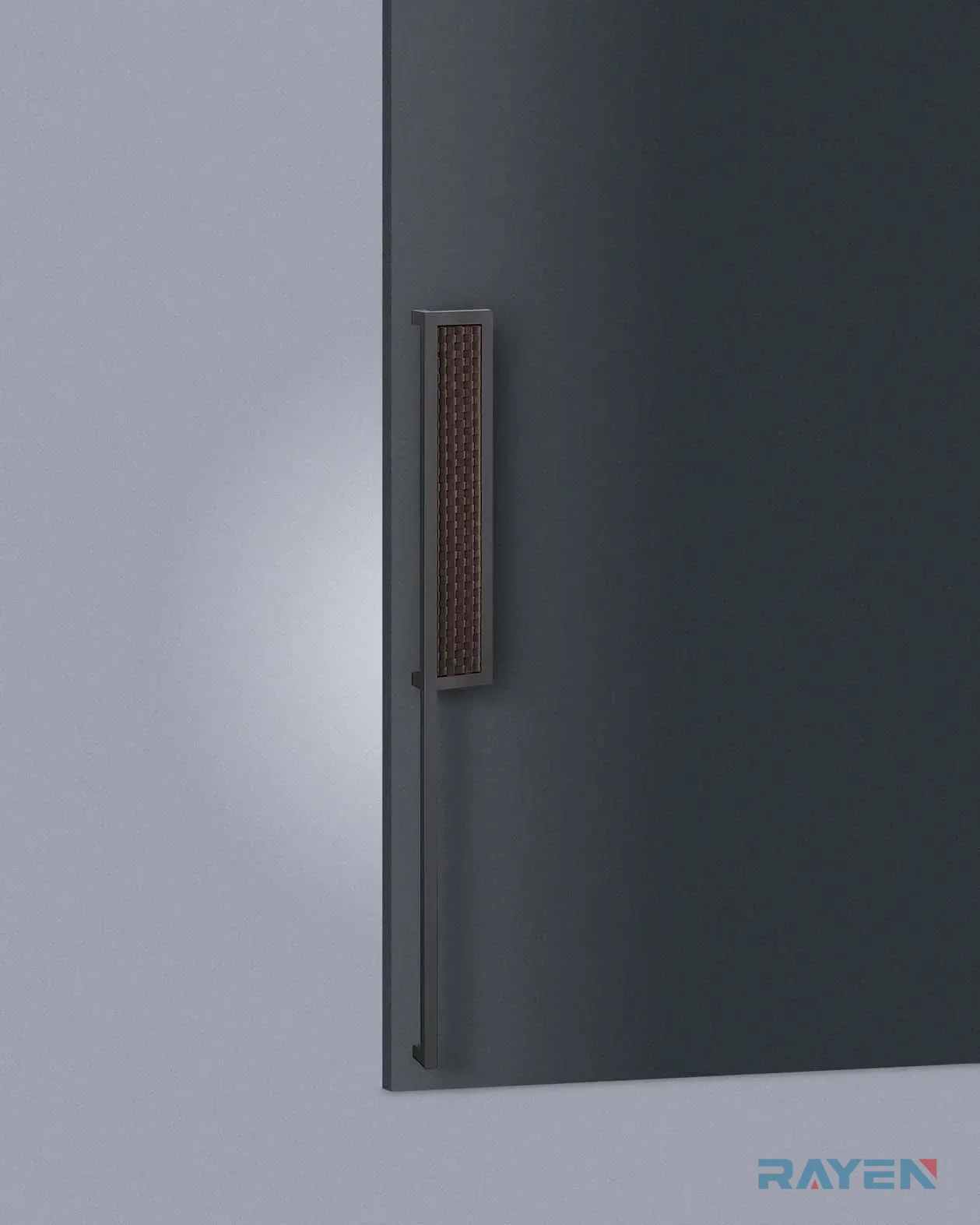

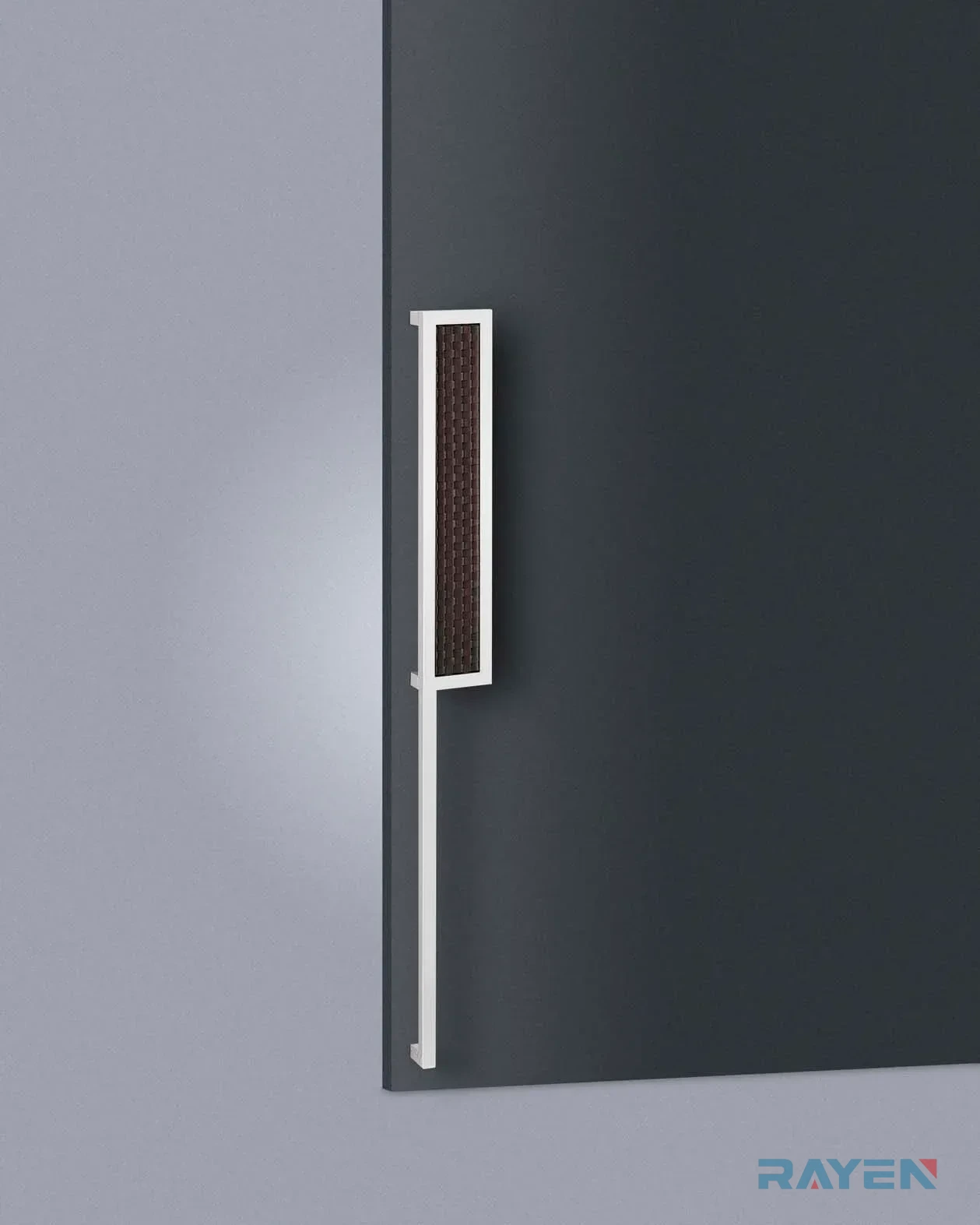

Stainless Steel Handle
Stainless Steel Handle for wooden door. Centre distance P=578mm.
Available finishes
- Satin stainless
- Matt black
Specification
| Centre distance | P=578mm |
|---|---|
| Overall length | 600mm |
| Plate width | 122mm |
| Grip section | 22mm |
| Projection | 30mm |
| Rose depth | 52mm |
| Weight | 4.6kg |
| Available lengths | 600–1200mm |
| Fixing screw | M8 |
| Fixing hole (glass door) | φ16mm |
| Fixing hole (timber door) | φ10mm |
